Hydraulic and mechanical belt tracking systems configured for the conveyor position, belt data and mounting interface.

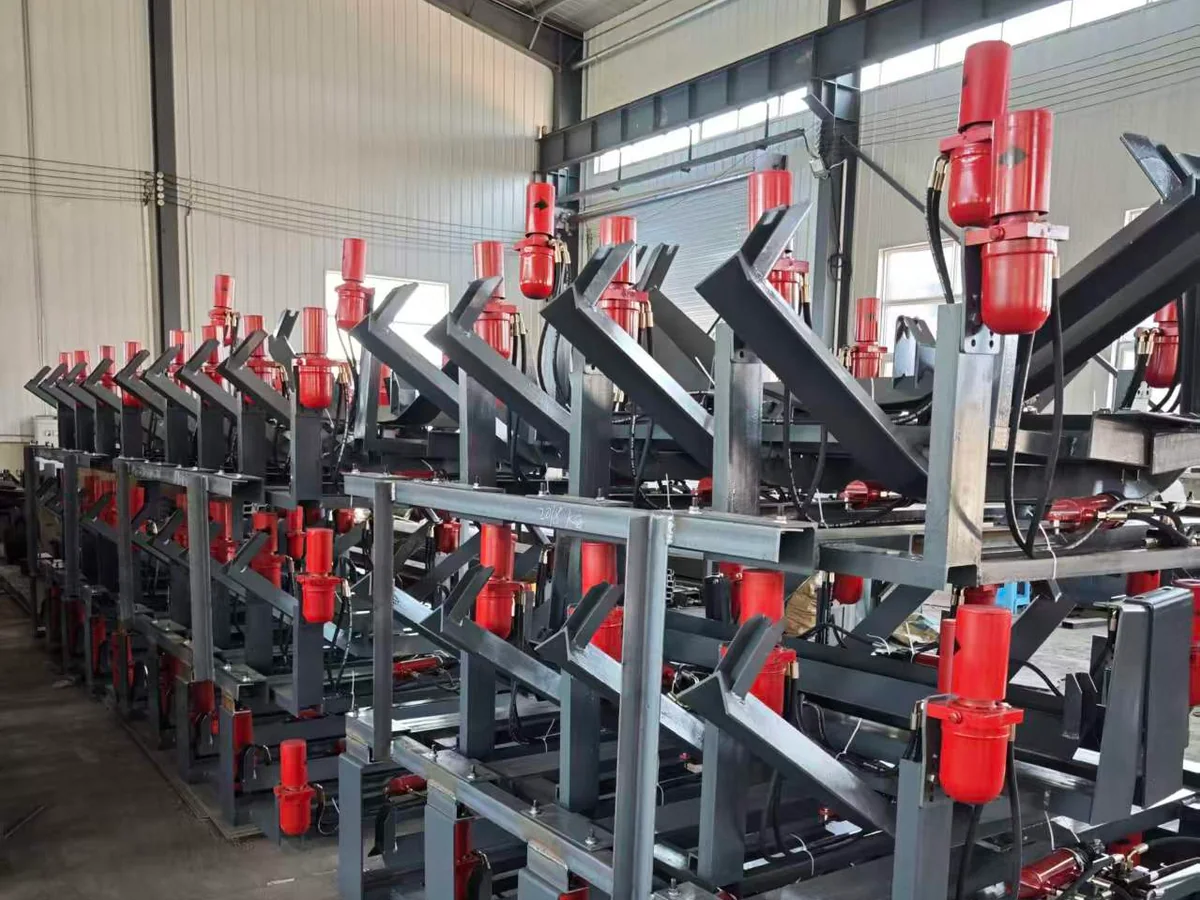

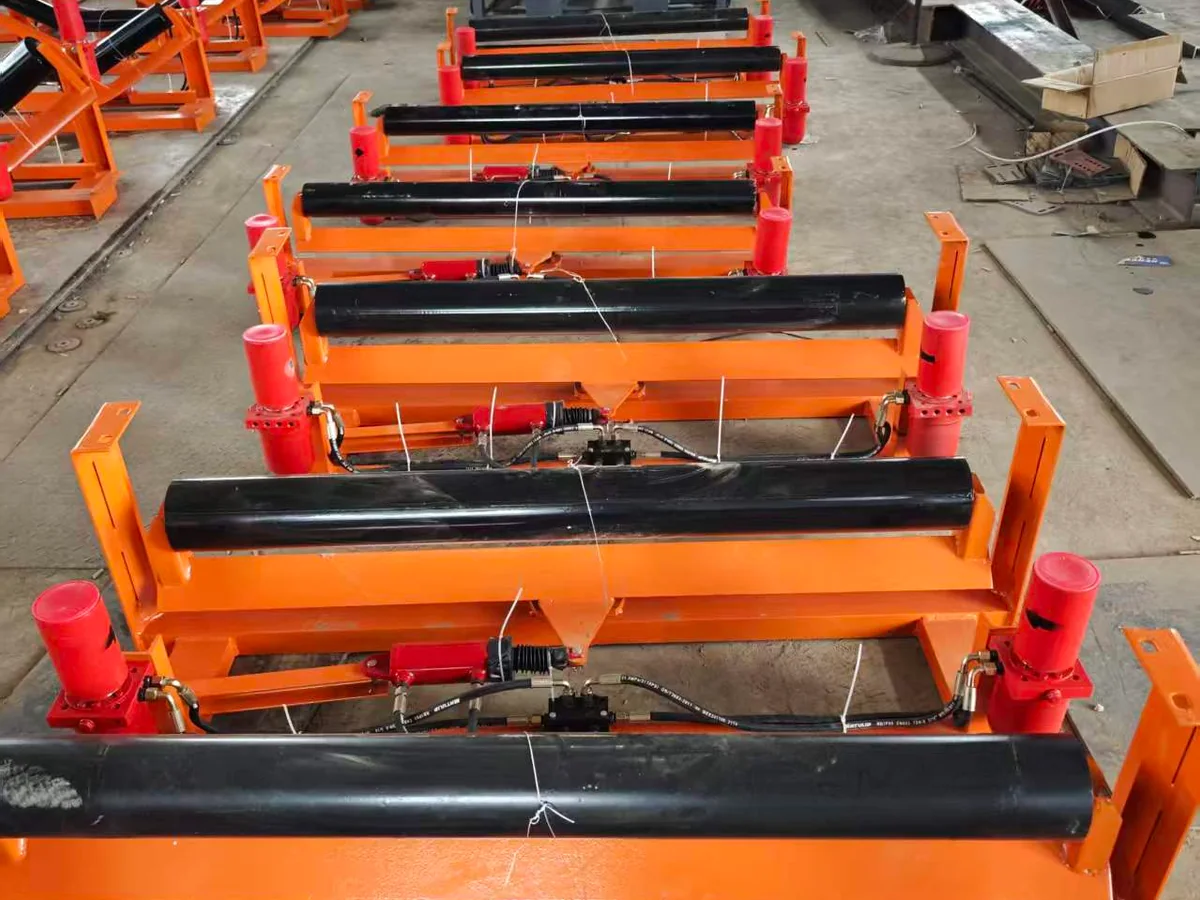

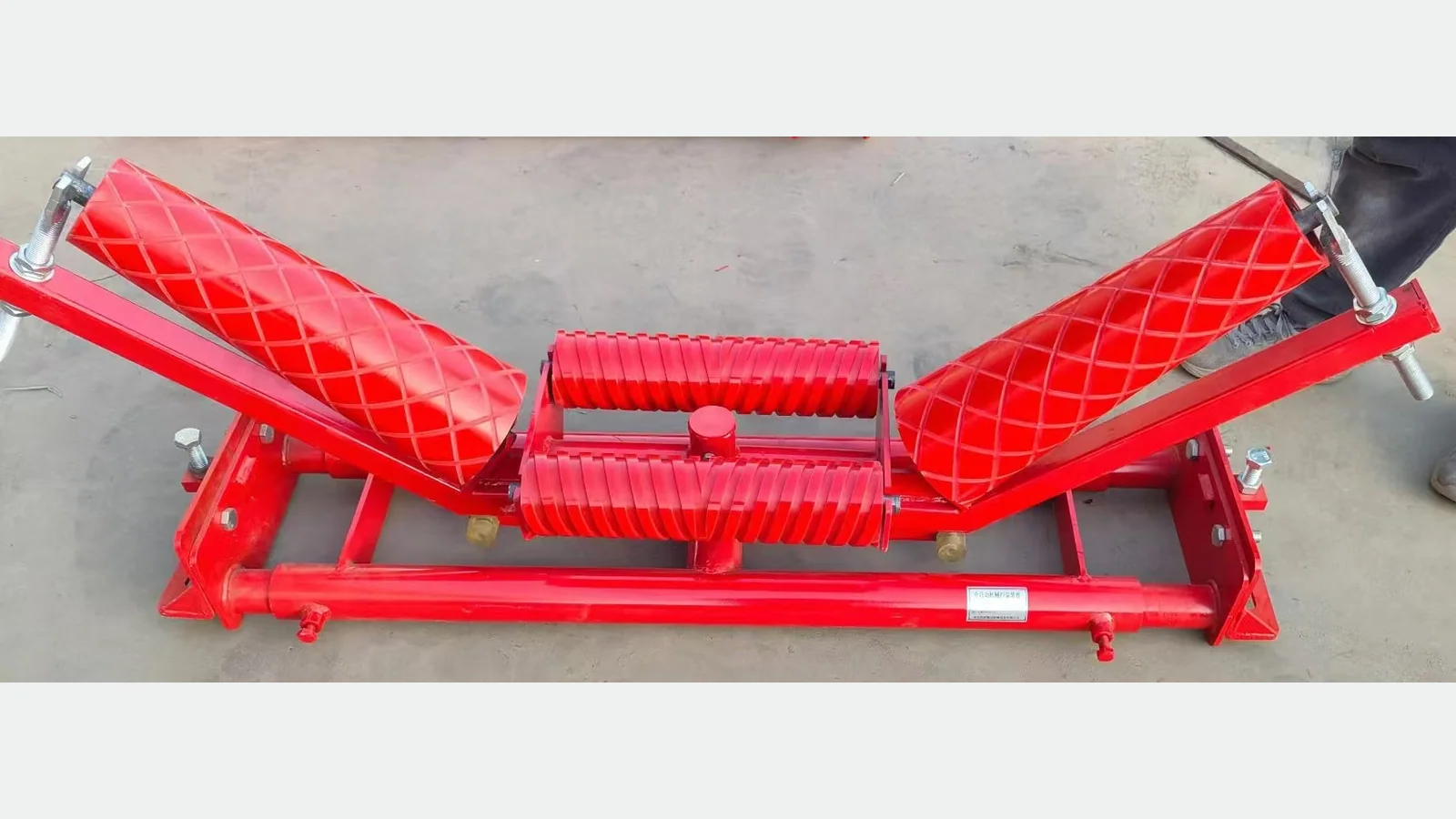

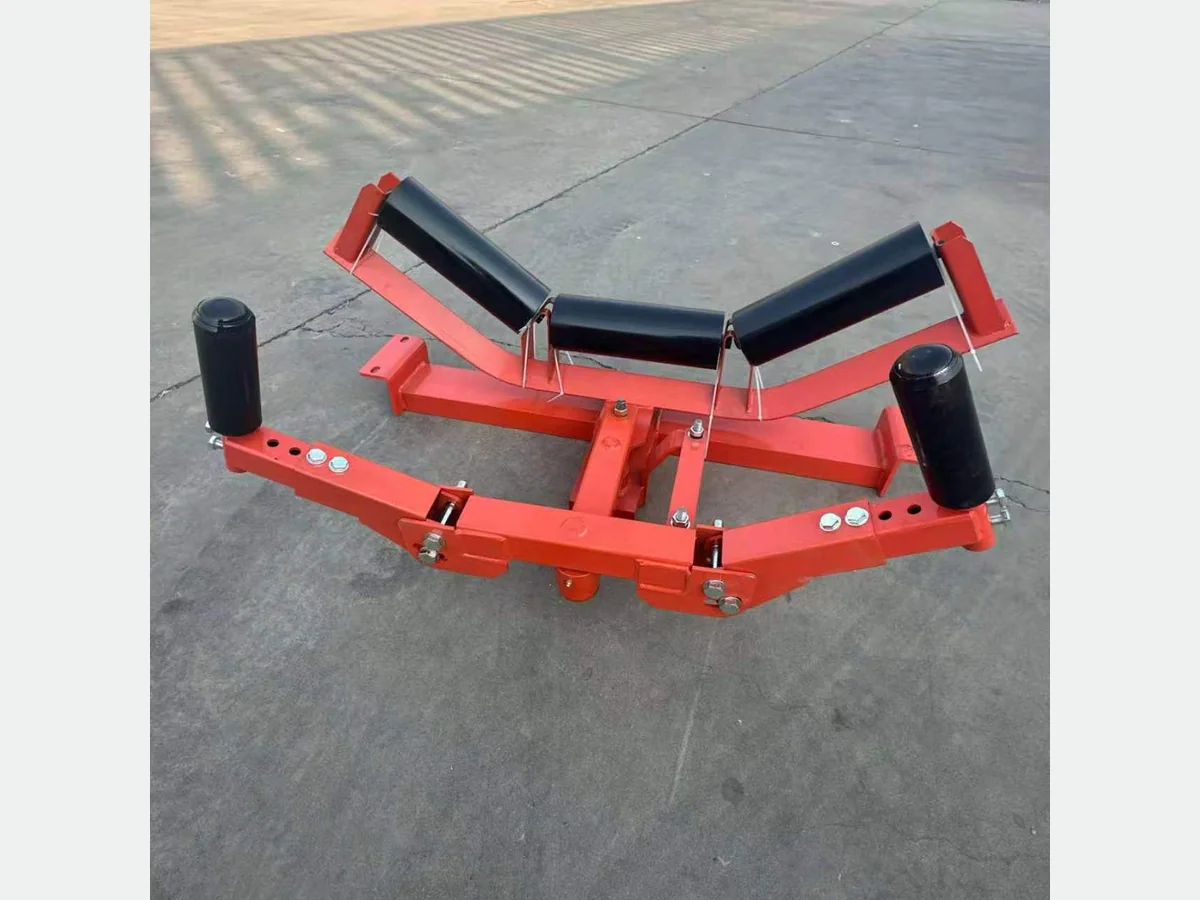

Junxin supplies conveyor belt tracking systems that respond to lateral belt movement and support controlled correction within the conveyor layout. Available configurations include hydraulic tracking assemblies with guide rollers and hydraulic actuation, and mechanical assemblies with a pivoting self-aligning frame.
We select the arrangement from the observed deviation pattern, carrying or return position, belt direction and speed, trough geometry, existing roller dimensions and available mounting space.
Available manufacturing ranges and configuration values are shown below. Final production data is confirmed for each order.
| Specification | Value |
|---|---|
| ConfigurationAvailable tracking types | Hydraulic / Mechanical |
| InstallationConveyor position | Carrying or return side, confirmed to application |
| InterfaceBelt width | Matched to conveyor data |
| InstallationMounting interface | Checked from installation dimensions |
Send us your drawing, measured dimensions, sample reference or application data. Junxin will review the manufacturing configuration and installation interfaces before quotation.
Junxin checks frame geometry, roller arrangement, pivot or hydraulic components, mounting interfaces and free movement against the approved production requirement before packing.
Check loading symmetry, structure and pulley alignment, idler condition, belt condition, speed, operating direction and the available mounting space.
The choice depends on the deviation pattern, conveyor position, belt data, operating environment and available mounting interface. Send photos or video and installation dimensions for review.
